Clamping-system > ideal <
This Clamping-system it is fit to machining-tables with t-slots 10 ...
28 mm or for
Screw-diameter threading M 10 ... M 24 / inch 3/8”...
1”.
Applicable for: Injection-moulding-machines, Milling- and
drilling-machines, Hydraulic- and
eccentric-presses and many more
The basis-version is for stepless clamping in highs from 0.. 50
up to 0..100 mm
|
This form of clamping elements we offer in two sizes from M 10 up to M 16 / inch 3/8” up to 5/8” |
This form
of clamping elements we offer in two sizes from M 16
up to M 24 / inch 5/8” up to 1” |
|

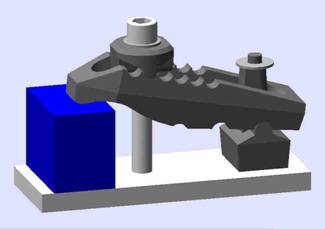

In this pictures you see the functionswise of the clamping elements. |
This draw
show the sign in the table |
Clamping
elements >>ideal<< (without screws)
For accessories you can order screws in DIN 912 12.9 (Inbus) metric or inch; DIN 787 8.8 (t-slot); DIN 6379 8.8 (stut bolts)
washers in DIN 125 or DIN 6340 and
another units.
Tabel for inch: Table
for inch sizes please click
|
Order-Nr. |
Threading
|
Measurement
|
Price/pce EURO - € |
|
Screw-measurement with with
calmp-high
DIN 912 12.9
DIN 787 8.8 |
||||||||
|
|
metric inch |
h1 |
h2 |
f max. |
c |
L |
net |
|
Measurement d x l |
Clamp-high |
|
Measurement |
Clamp-high |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Si 020-10 |
M 10 |
0-
50 |
25 |
50 |
10 |
100 |
|
|
M 10 x
80 M 10 x
90 M 10 x 100 |
0 –
25 20 – 38 35 – 50 |
|
10 M10 x 115 12 M10 x 115 |
0 - 50 0 - 50 |
|
Si 020-12 |
M 12 |
0- 50 |
25 |
50 |
10 |
100 |
|
|
M 12 x
80 M 12 x
90 M 12 x 100 |
0 – 25 15 – 38 27 – 50 |
|
12 M12 x 115 14 M12 x 115 |
0 - 50 0 - 50 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Si 120-12 |
M 12 |
0- 70 |
30 |
75 |
12 |
135 |
|
|
M 12 x
90 M 12 x 110 M 12 x 120 |
0 – 25 25 – 50 50 – 70 |
|
12 M12 x 125 14 M12 x 125 |
0 - 70 0 - 70 |
|
Si 120-16 |
M 16 |
0- 70 |
30 |
75 |
12 |
135 |
|
|
M 16 x 100 M 16 x 110 M 16 x 120 |
0 – 30 25 – 50 40 – 70 |
|
16 M16 x 125 18 M16 x 125 |
0 - 70 0 - 70 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Si 220-16 |
M 16 |
0- 80 |
|
105 |
|
190 |
|
|
M 16 x 110 M 16 x 120 M 16 x 140 |
0 – 35 25 – 55 45 – 80 |
|
16 M16 x 175 18 M16 x 175 |
0 - 80 0 - 80 |
|
Si 220-20 |
M 20 |
0- 80 |
|
105 |
|
190 |
|
|
M 20 x 110 M 20 x 130 M 20 x 150 |
0 – 30 30 – 60 55 – 80 |
|
20 M20 x 175 22 M20 x 175 |
0 - 80 0 - 80 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Si 320-20 |
M 20 |
0-100 |
|
140 |
|
240 |
|
|
M 20 x 130 M 20 x 150 M 20 x 180 |
0 – 35 35 – 65 65 -100 |
|
20 M20 x 200 22 M20 x 200 |
0 - 100 0 - 100 |
|
Si 320-24 |
M 24 |
0-100 |
|
140 |
|
240 |
|
|
M 24 x 130 M 24 x 150 M 24 x 180 |
0 – 35 35 – 65 65 -100 |
|
24 M24 x 200 28 M24 x 200 |
0 - 100 0 -
100 |
For
prices inform by our agent
Order-example: 8 pce Clamping elements “ ideal” No. Si 120-16
8 pce Screws
DIN 912 12.9 M 16 x 120
Inquiry or order send
a e-Mail
