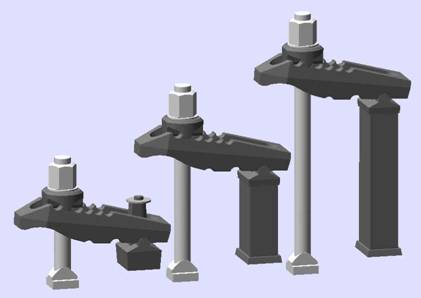

Clamping-system > compact <
This Clamping-system it is fit to machining-tables with t-slots 10 … 28
mm (thread-diameter M 10 ... M 24)
It is an extension of the clamping
system > ideal< and become deliver with t-slot-screws.
Applicable for: Milling- and drilling-machines, Hydraulic- and
eccentric-presses and many more
The
clamping area is
extended by the individual elements stepless.
The
function mode of this system you find by clamping system >ideal<.
|
|
|
|
The
clamping elements are with t-slot screws
|
Order-no.
|
T-slot
>a< mm
|
clamp area
h f max.
|
measure body
l x b
|
t-slot screw
DIN 787 8.8
|
Price / pce.
EURO - €
without Mwst.
|
|
Sc 140-..
Sc 141-..
Sc 142-..
Sc 143-..
Sc
160-..
Sc 161-..
Sc 162-..
Sc 163-..
|
12
oder
14
16
oder
18
|
0 ..
70
65 .. 135 75
130 .. 200
190 .. 260
0 ..
70
65 .. 135 75
130 .. 200
190 .. 260
|
130 x 40
130 x 40
|
M 12 x 125
M 12 x 200
M 12 x 250
M 12 x 315
M 16 x 125
M 16 x 200
M 16 x 250
M 16 x 315
|
|
|
Sc 240-..
Sc 241-..
Sc 242-..
Sc 243-..
Sc
260-..
Sc 261-..
Sc 262-..
Sc 263-..
|
16
oder
18
20
oder
22
|
0 ..
80
70 .. 160 80
150 .. 240
230 .. 320
0 ..
80
70 .. 160 80
150 .. 240
230 .. 320
|
190 x 52
190 x 52
|
M 16 x 170
M 16 x 250
M 16 x 315
M 16 x 400
M 16 x 170
M 16 x 250
M 16 x 315
M 16 x 400
|
|
|
Sc 340-..
Sc 341-..
Sc 342-..
Sc
360-..
Sc 361-..
Sc 362-..
|
20
oder
22
24
oder
28
|
0 .. 100
90 .. 210 100
200 .. 320
0 .. 100
90 .. 210 100
200 .. 320
|
240 x 67
240 x 67
|
M 20 x 200
M 20 x 315
M 20 x 400
M 24 x 200
M 24 x 315
M 24 x 400
|
|
|
|
|
For prices
inform by our agent
By order-no. we need the
order-no and t-slot >a<
Order-example: 8 pce Clamping elements “ compact” No. Sc 160-18
Inquiry order
send a e-Mail
